BPF 1
Following summary is extracted from Chapter 1 of BPF Performance Tools: Linux System and Application Observability.
NOTE: Most of this summary are full quotes from the book; all diagrams are copied from the book.
What is BPF
BPF provides a way to run mini programs on a wide variety of kernel and application events, allowing kernel to run mini programs on system and application events such as disk I/O.

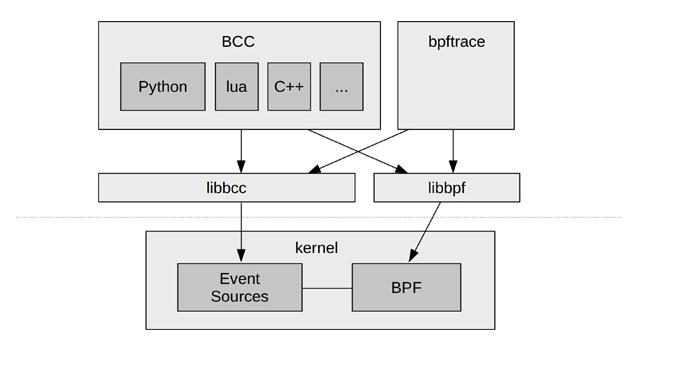

BCC, BPFTRACE and IO Visor
BCC & BPF: both are high-level framework for building BPF tools; BCC are for more complex tools whereas BPF are for one-liners
BPF can be considered a virtual machine due to its virtual instruction set specification, which are exercuted by a Linux kernel BPF runtime. This BPF runtime includes an interpreter and a JIT compiler for turning BPF instructions into native instructions for execution.
BCC and bpftrace do not live in the kernel code but in a github project IO Visor.
Analysis techniques
| Technique | Meaning | Tools |
|---|---|---|
| Tracing | Record raw events and event metadata | BPF tools, strace, tcdpdump |
| Sampling | paint a picture using a subset of measurement, aka creating a profile or profiling - like tracer but only collect regularly data point | profile |

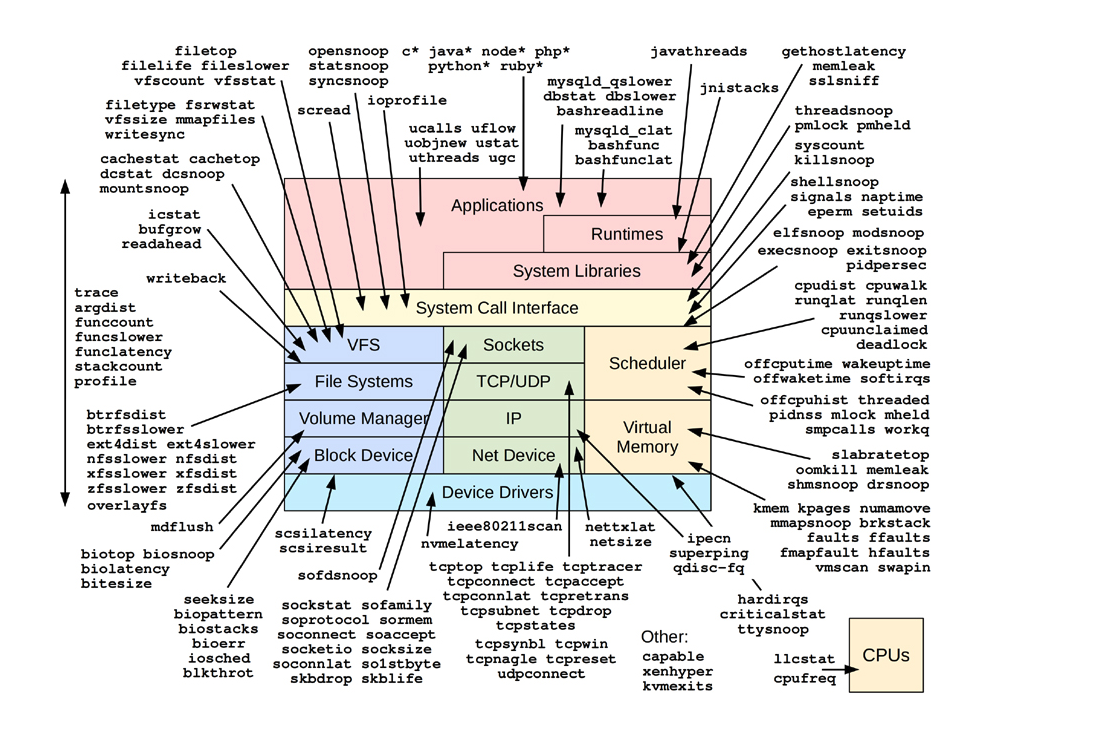

Whatever You’re Into, BPF’s Got You Covered
Dynamic Instrumentation
BPF tracing supports multiple sources of events to provide visibility of the entire software stack. One of which is dynamic instrumentation (aka dynamic tracing) - the ability to insert instrumentation points into live software, in production. It costs zero overhead when not in use as software runs unmodified; is often used by BPF tools to instrument the start and aend of kernel and application functions.
Linux’s dynamic instrumentation for user-level and kernekl-level functions are
uprobesandkprobesrespectively.
Static Instrumentation
Problem with dynanic instrumentation: function names may change which breaks instrumentation.
Solve: use static instrumentation, which means developer must maintain the event names in the software’s code.
